Free Woodworking Tool

Plan Your Perfect
Workshop Layout

Drag and drop your tools, workbenches, and dust collection runs to scale on a real floor plan — no account, no software to install, completely free.

No password. No credit card. Just your email.

Or skip this step entirely by clicking the 'SKIP TO PLANNER' button in the upper right.

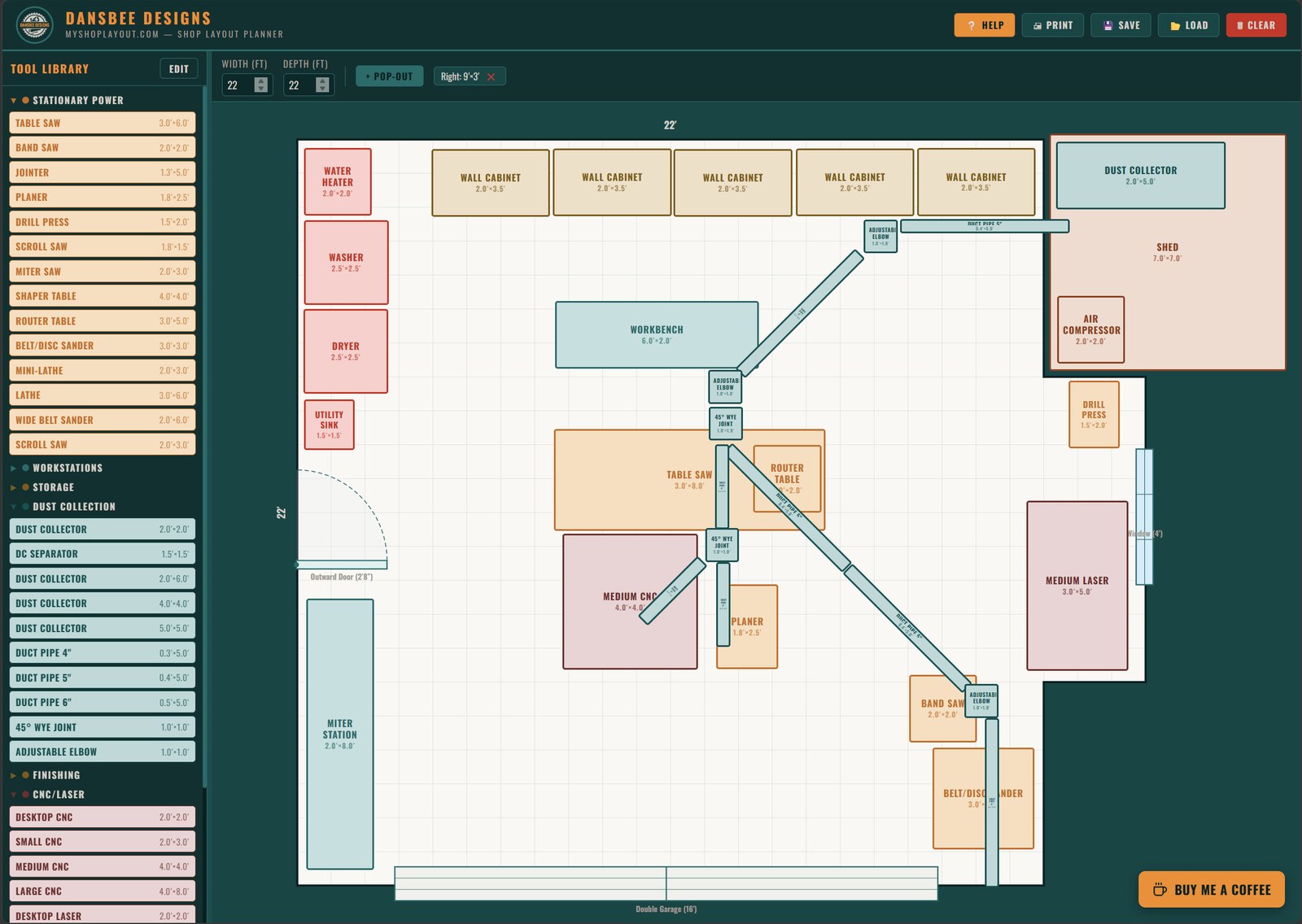

MyShopLayout shop floor plan planner — drag and drop tool layout
Everything included — free
📐
Drag & Drop Layout
Place every tool and workstation to scale on a real floor plan grid. Rotate, resize, and reposition anything.
🪚
Full Tool Library
Table saws, bandsaws, lathes, CNC machines, dust collectors, and more — or add your own custom tools.
🚪
Doors & Windows
Add swing doors with accurate arc clearance, garage doors, and windows — all orientable and mirrored.
📏
Custom Shop Shapes
Edit any wall dimension and add pop-outs on any side for garages with odd shapes or pop-outs.
✏️
Fully Editable
Rename tools, adjust dimensions per instance, and customize your entire tool library to match your real shop.
🖨️
Print & Save
Print your layout directly or save it as a file to pick up exactly where you left off — no login required.
How it works
1
Enter your email
Instant free access — no password, no account setup required.
2
Set your shop size
Click any wall to enter your real dimensions. Add pop-outs for irregular shapes.
3
Drag your tools in
Drop everything from the library onto your floor plan and arrange until it's perfect.

Ready to Plan Your Shop?

Takes 30 seconds to get in. No account required.

Join other woodworkers already using it — free today, tomorrow, and every day after that.
